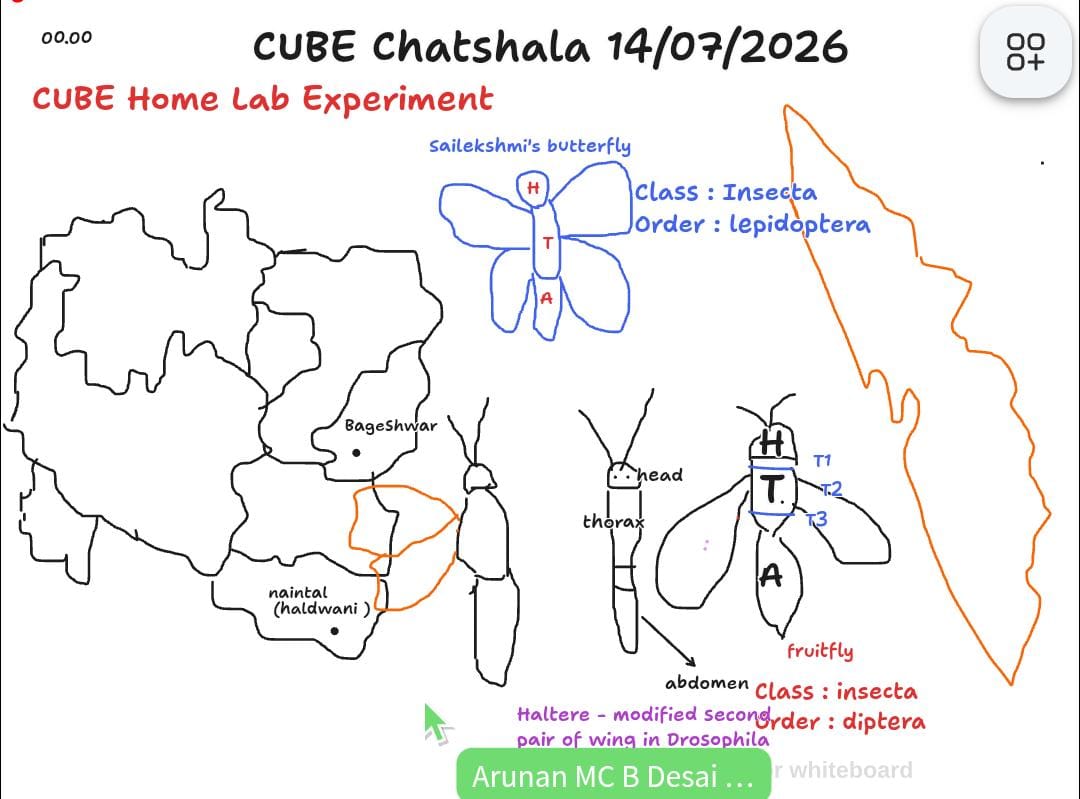

Today’s session, held on 14 July 2026, revisited the CUBE Home Lab Experiment theme, this time bringing insect body plans and field observations from Uttarakhand into the same conversation. The whiteboard opened with a map of the Bageshwar and Nainital (Haldwani) region, where a participant had been tracking a live specimen out in the field, alongside two illustrated insects: a butterfly labelled “Sailekshmi’s butterfly” and a fruit fly diagram contributed to the group.
Sailekshmi’s butterfly was classified under Class Insecta and Order Lepidoptera, and the drawing broke the body down into its three fundamental segments, head (H), thorax (T), and abdomen (A). This tripartite structure is the anchor point of insect anatomy: as the Purdue Entomology reference notes, every adult insect has three pairs of legs and three distinct body parts, along with a pair of antennae, two pairs of wings, and eyes and mouthparts suited to its particular lifestyle. The group used this framework to compare the butterfly against the fruit fly sketch, which carried the same head-thorax-abdomen labelling but added a further layer of detail on the thorax, broken into T1, T2, and T3.
That T1–T2–T3 subdivision became a talking point in its own right. In winged insects the thorax is not a single block; it is made up of three fused segments, the prothorax, mesothorax, and metathorax, and it is this middle body region that carries the legs and wings. As the Purdue reference explains, the thorax is the middle body part to which the legs and wings are attached, while the abdomen holds the digestive and reproductive organs, and both regions are lined along their sides with tiny breathing pores called spiracles. Seeing this thoracic segmentation drawn out helped the group appreciate why the fruit fly’s wing structure looks the way it does.
This naturally led into a discussion of the haltere, the small, club-shaped structure visible just behind the fruit fly’s single pair of functional wings. The whiteboard note describes it precisely: the haltere is a modified second pair of wings, a hallmark of the order Diptera (true flies), to which the fruit fly belongs. Unlike butterflies, which carry two full pairs of wings for flight, dipterans have sacrificed their hindwings in favour of these small, rapidly oscillating halteres, which function as gyroscopic sensors that help the insect maintain balance and stability in flight. The classification recorded on the board for the fruit fly, Class Insecta and Order Diptera, sits in direct contrast to the butterfly’s Lepidoptera, and this side-by-side comparison was the crux of today’s anatomical exercise: two insects, same three-part body plan, but very different wing arrangements and very different evolutionary solutions to flight.
The field-observation portion of the session, marked by the hand-drawn map of Bageshwar and Nainital/Haldwani, appears to document a specimen encountered during outdoor fieldwork in that region, with the sketch beside the map possibly representing the actual insect observed in situ. This kind of ground-level, location-anchored documentation is very much in the CUBE tradition of pairing formal taxonomic learning with real, dated, geographically specific observation, so that the science stays tethered to something a participant genuinely saw rather than something borrowed from a textbook.
Provocative Questions
-
If a butterfly’s forewing and hindwing are both fully functional for flight, what evolutionary pressure led dipterans like the fruit fly to reduce their hindwings down to halteres instead of keeping them as flight surfaces?
-
The thorax carries three sub-segments (T1, T2, T3) even in insects that use only one pair of wings. What does each segment actually do if only T2 and T3 (in most flies) end up bearing wing-related structures?
-
Given that Lepidoptera and Diptera both belong to Class Insecta, what deeper shared ancestral traits explain the common head-thorax-abdomen plan, despite such different wing strategies?
-
How does a structure like the haltere, which no longer functions as a wing, still count as “modified” rather than “lost”? What does that distinction tell us about how evolution repurposes existing body parts?
-
What can the location data from Bageshwar and Nainital/Haldwani tell us about the ecological range or seasonal presence of the species observed there?
-
If halteres act as gyroscopic balance sensors, what happens to a fly’s flight stability if a haltere is damaged or removed, and how might citizen scientists design a simple, ethical home observation to explore this?
What I Have Learned
Today’s session reinforced how much anatomical information is packed into what looks, at first glance, like a simple three-part insect body. The head-thorax-abdomen plan is often introduced as a basic fact in early biology education, but working through the actual whiteboard drawings made clear how much functional specialization is layered onto that basic plan, especially in the thorax, which is really doing double duty as both a locomotor hub and, in the case of the haltere, a sensory organ.
I found the fruit fly and butterfly comparison particularly clarifying. Placing Lepidoptera and Diptera side by side on the same board, with the same labelling convention (H, T, A) applied to both, made the differences in wing strategy much easier to absorb than reading about them separately would have been. It is one thing to know abstractly that flies have one pair of wings and butterflies have two; it is another to see the haltere drawn in position and understand it as a former wing repurposed into a balance organ rather than simply an absent structure.
The inclusion of the Bageshwar and Nainital/Haldwani map was a good reminder that CUBE’s strength lies in connecting textbook taxonomy to a specific, real place and a specific, real observation. It keeps the science honest and grounded rather than purely diagrammatic.
TINKE Moments (This I Never Knew Earlier)
TINKE Moment 1: The haltere is a modified wing, not a missing one.
Before this session, it would be easy to look at a fly and simply note that it has “one pair of wings” without registering that the second pair still exists in a different form. Today’s discussion made explicit that the haltere is not an absence but a transformation, a structure that still does aerodynamic work, just not in the way a conventional wing does. This is a small but important shift in framing: from “flies lost their hindwings” to “flies repurposed their hindwings.”
TINKE Moment 2: The thorax is not one segment, but three.
The T1, T2, T3 labelling on the fruit fly diagram made explicit something that is easy to gloss over when the thorax is treated as a single labelled region. Recognizing that the thorax itself is a compound structure, with each sub-segment potentially bearing its own legs or wings, sharpens the anatomical vocabulary the group can use going forward.
TINKE Moment 3: Shared body plan across very different orders.
Seeing Lepidoptera and Diptera drawn with the identical head-thorax-abdomen convention was a concrete “now I know explicitly” realization that Class Insecta unifying anatomical rule holds even across orders whose adult forms look completely different from each other.
Gaps and Misconceptions
-
The whiteboard identifies the fruit fly and butterfly by class and order, but does not record genus or species-level identification for either specimen. Without that detail, it is hard to confirm, for instance, whether “Sailekshmi’s butterfly” corresponds to a specific documented species or was used as a generic illustrative example.
-
The precise significance of the Bageshwar/Nainital map, whether it marks a collection site, an observation site, or simply a geographic reference for context, was not fully spelled out in the notes, and would be worth clarifying so future readers of this write-up understand the connection between the map and the insect sketches beside it.
-
The mechanism by which halteres provide gyroscopic feedback (their role in detecting Coriolis forces during flight) was named but not elaborated upon; a deeper explanation here would strengthen the group’s grasp of insect flight physiology.
-
There is a risk of conflating “Insecta” as a taxonomic class with more informal, colloquial uses of the word “insect,” particularly for newer participants; reinforcing the formal Linnaean hierarchy (Kingdom through Species) in a future session would help solidify this distinction.

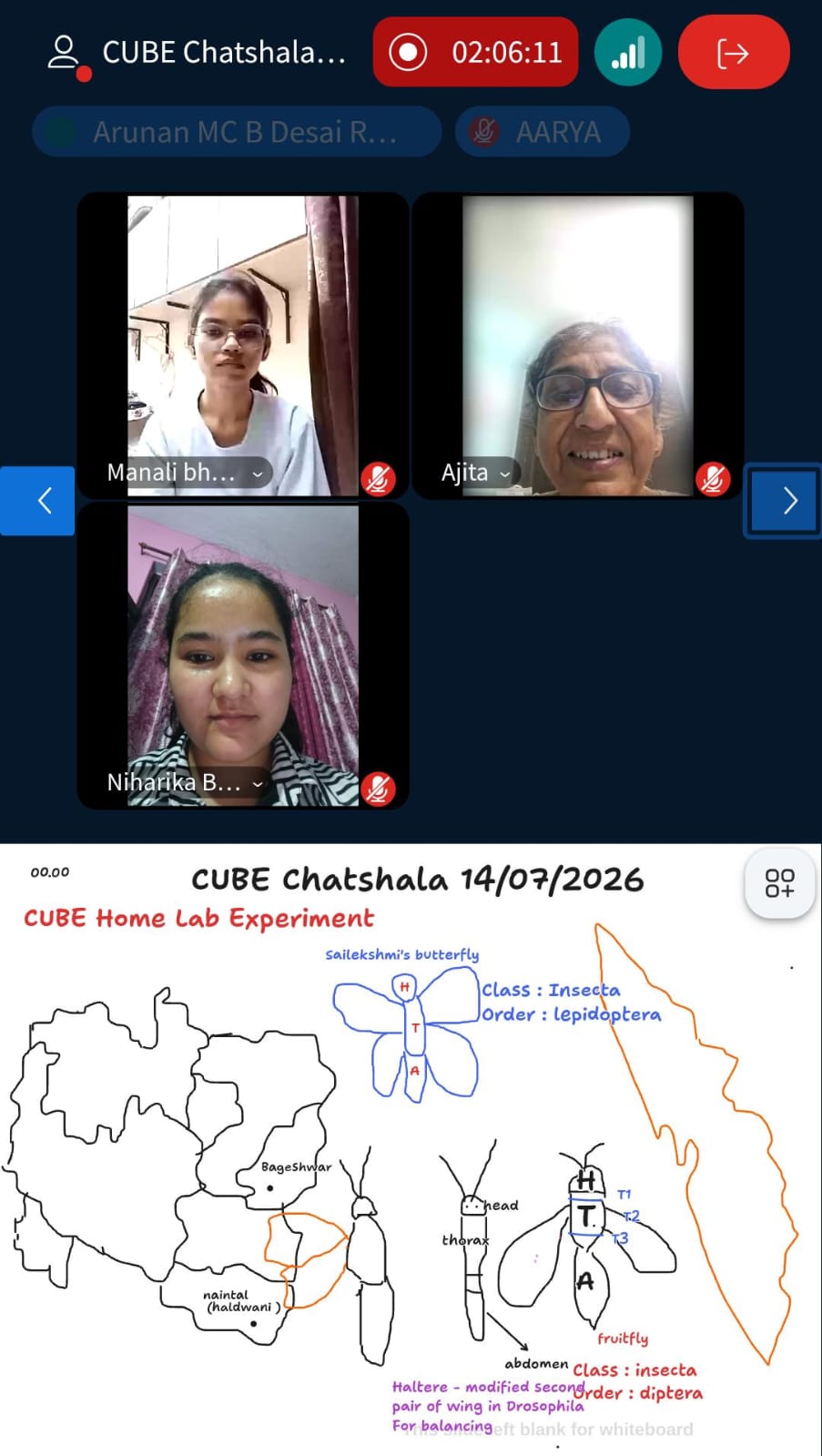

Photographs during Chatshaala
