CUBE ChatShaala Session Summary: Chromatography vs. Electrophoresis

Date: October 10, 2025

Topic: Introduction to Separation Techniques: Chromatography vs. Electrophoresis

Overview

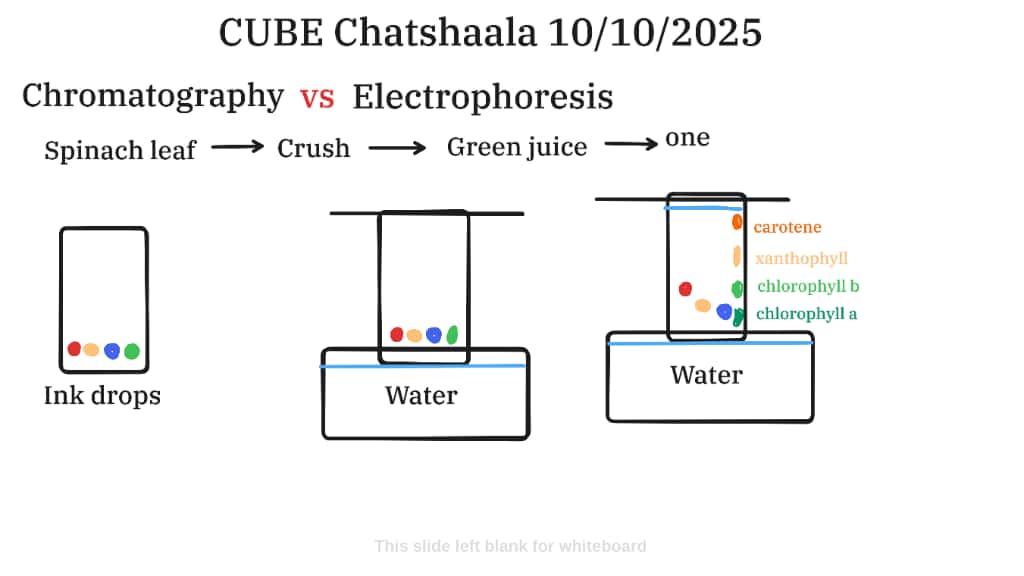

The CUBE ChatShaala session focused on introducing and contrasting two fundamental biochemical separation techniques: chromatography and electrophoresis. The session utilized a practical example of pigment separation from a spinach leaf extract to illustrate the principles of chromatography.

Key Concepts and Demonstration

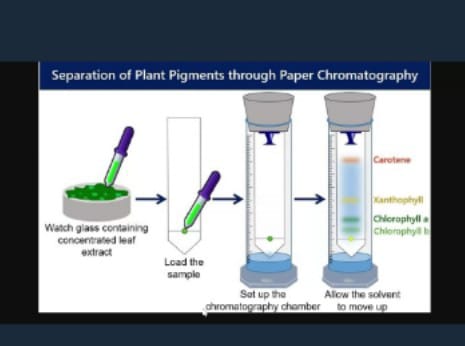

The primary demonstration centered on the technique of paper chromatography as a method for resolving the various pigments present in a green plant sample.

Sample Preparation: A spinach leaf was crushed to produce a green juice (crude extract), which contains a mixture of plant pigments.
Chromatography Setup: A small spot of the green extract (and separately, a mixture of ink drops) was applied near the bottom edge of a chromatography paper (the stationary phase). This paper was then placed into a container with a solvent, likely water or a mixture (the mobile phase), ensuring the solvent level was below the applied spot.
Separation: As the mobile phase (solvent) moved up the stationary phase (paper) via capillary action, it carried the components of the sample mixture along with it. The rate at which each component traveled depended on its differential solubility in the mobile phase and its adsorption to the stationary phase.

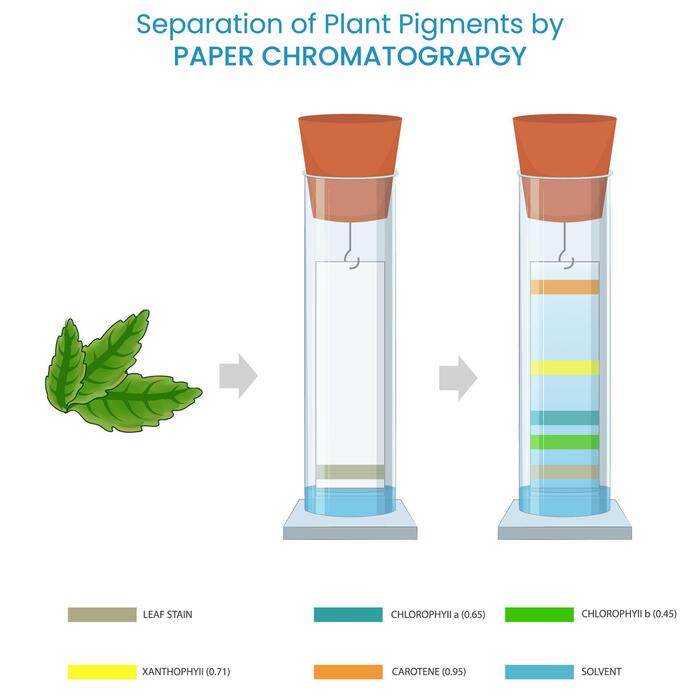

Results (Separation of Plant Pigments): The green extract was successfully separated into its constituent pigments, demonstrating the effectiveness of the technique. The pigments, listed from the highest distance traveled (most soluble/least adsorbed) to the lowest (least soluble/most adsorbed), were:
- Carotene (Orange)
- Xanthophyll (Yellow)
- Chlorophyll b (Blue-Green)
- Chlorophyll a (Green-Blue)

The demonstration of the ink drops further underscored that chromatography is a general technique applicable to separating any mixture based on differential partitioning between the two phases.

The session established chromatography as a technique based on the physical/chemical properties of components (solubility and adsorption), setting the stage for a conceptual comparison with Electrophoresis (a technique primarily based on separation according to charge and molecular size in an electric field).

Audience Engagement: Provocative Queries from the ChatShaala

To spark discussion and critical thinking based on today’s session, consider the following questions for the general audience:

“Why Green Juice Isn’t Just ‘Green’?”

The pigment puzzle: The demonstration showed that a single spinach leaf contains at least four distinct colors. How does the presence of yellow (Xanthophyll) and orange (Carotene) pigments fundamentally change our understanding of photosynthesis and leaf color, especially in autumn?

“The Speed Limit of Molecules”

In paper chromatography, a molecule’s speed is dictated by its attraction to the paper versus its solubility in the solvent. If we were to change the solvent from water to, say, alcohol, how would the order of the separated pigments potentially change, and what does this reveal about the underlying chemistry (polarity) of Chlorophyll vs. Carotene?

“Charge vs. Solubility: When to Use Which Tool?”

We compared Chromatography (solubility/adsorption) and Electrophoresis (charge/size). If you needed to separate different fragments of DNA or different forms of an enzyme, which technique would you choose and, more importantly, why does the dominant factor (charge or solubility) matter most for separating these large biological macromolecules?

My Key Learnings & Insights

What I Have Learned

The session provided a clear, visual connection between a common biological sample (spinach) and a powerful analytical technique (chromatography). I learned that:

Green is a Spectrum: What appears as a single color (green) in a leaf is actually a complex mixture of pigments, each with a distinct chemical identity and role.
Basis of Separation: The separation of pigments is not random but governed by their specific chemical properties: Carotene traveled farthest, indicating it is the most non-polar (or most soluble in the solvent system used), while the Chlorophylls are more polar and adsorbed more strongly to the paper.
Fundamental Contrast: The core difference between Chromatography and Electrophoresis lies in the driving force for separation: Differential Partitioning (Chromatography) versus Movement in an Electric Field (Electrophoresis).

TINKE Moments (This I Never Knew Earlier)

The Invisible Spectrum (TINKE): It is fascinating to realize that the vibrant, non-green pigments like Carotene and Xanthophyll are present in leaves all year, even when they appear intensely green. Their visibility is merely masked by the much higher concentration of chlorophyll. This makes us think about what other ‘invisible’ components are masked in everyday biological samples.
Universal Principle (TINKE): The chromatography principle demonstrated with simple ink drops and a leaf extract is the same principle used in highly advanced, multi-million dollar instruments (like HPLC and GC-MS) used for drug testing and environmental analysis. The complexity is in the medium and the solvent, not the fundamental idea.

Gaps and Misconceptions

The transition from a simple visual demonstration to the more theoretical concept of Electrophoresis likely created conceptual gaps that need to be addressed in future sessions.

Gap in Electrophoresis Mechanism: The session effectively demonstrated chromatography but only contrasted it with electrophoresis. A clear visual or conceptual explanation of how an electric current and a charged molecule interact to cause separation (e.g., how DNA migrates through a gel) was absent. This is a significant gap in understanding the full comparison.
Misconception of “Speed”: A potential misconception is that components separate based purely on ‘speed’ up the paper. It is essential to clarify that this ‘speed’ is the net effect of continuous, competing interactions: the molecule is constantly ‘sticking’ to the paper and being ‘washed off’ by the solvent. It is not just a straight race.
Misconception on Polarity: The terms polar and non-polar were likely not explicitly tied to the pigment names. A key misconception might be not knowing why Carotene is less attracted to the paper than Chlorophyll—it’s because Carotene is much less polar, while the paper (cellulose) and the likely water-based solvent are polar. This chemical reason is the core of the separation.
